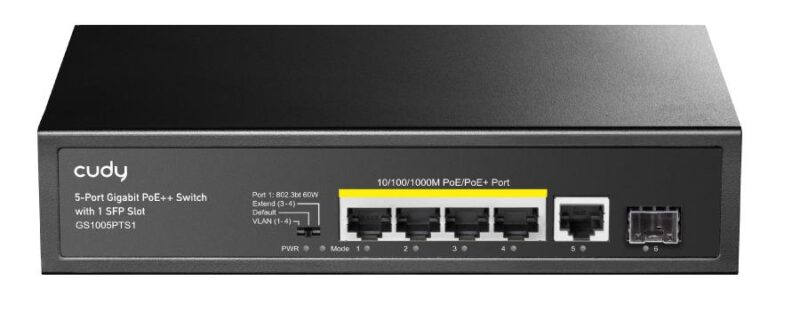

● 120 watts PoE power supply● 4 Gigabit PoE+ ports and 1 Gigabit Ethernet ports+1Gigabit SFP● Extend mode support remote PoE feeding up to 250m● VLAN mode isolate each PoE Ports for security● Watchdog reactivates the abnormalPD by resuming POE power● IEEE 802.3at / IEEE 802.3af standard compliant● Plug&play, simple setup with no configuration needed Model GS1005PTS1 Ethernet 4*10/100/1000M PoE Port 1*1000M RJ45 Port 1* Gigabit SFP Uplink Port Switching Capacity 12Gbps Throughput 8.928Mpps Packet Buffer 1Mb MAC Address 2K Jumbo Frame 9216bytes Transfer Mode Store and forward MTBF 100000 hour Network protocol IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab(1000Base-TX) IEEE802.3z(1000Base-FX) IEEE802.3x (Flow control) PoE Protocol IEEE802.3af （15.4W） IEEE802.3at （30W） IEEE802.3at （4 Pair 60W） Industry Standard EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD),EN61000-4-4 (EFT),EN61000-4-5 (Surge) Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 Network Medium 10Base-T : Cat3、4、5 or above UTP(≤100m) 100Base-TX : Cat5 or above UTP(≤100m) 1000Base-TX : Cat5 or above UTP(≤100m) Optical Media Multimode fiber : 50/125, 62.5/125, 100/140μm Single mode fiber: 8/125, 8.7/125, 9/125, 10/125μm Working Environment Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet PWR（power supply） Lighting：Powered Un-Light：No Power Mode（DIP） Lighting：VLAN Un-Light：Default Flashing：Extend 1-6 Gree（Link&Data） Lighting：Connecting Flashing：Data Transmit Un-Light：Disconnect DIP Switch VLAN：Port isolation mode. In this mode, the PoE ports (1-4) of the switch cannot communicate with each other, and can only communicate with the UP-link port. Default: Normal mode, all port can communicate with each other, the transmission distance is within 100 meters Extend：Link extension mode, 3-4 ports PoE power supply and data transmission distance can be extended to 250 meters, the transmission rate becomes 10M Product Dimension 200*118*44mm Package Dimension 245*190*60mm N.W 0.6kg G.W 0.9kg Packing Info Carton MEAS：505*320*402mm Packing Qty：20units Packing Weight：19KG Package List Input Voltage ：AC 100-240 V Package List Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Certification 1 pc,
