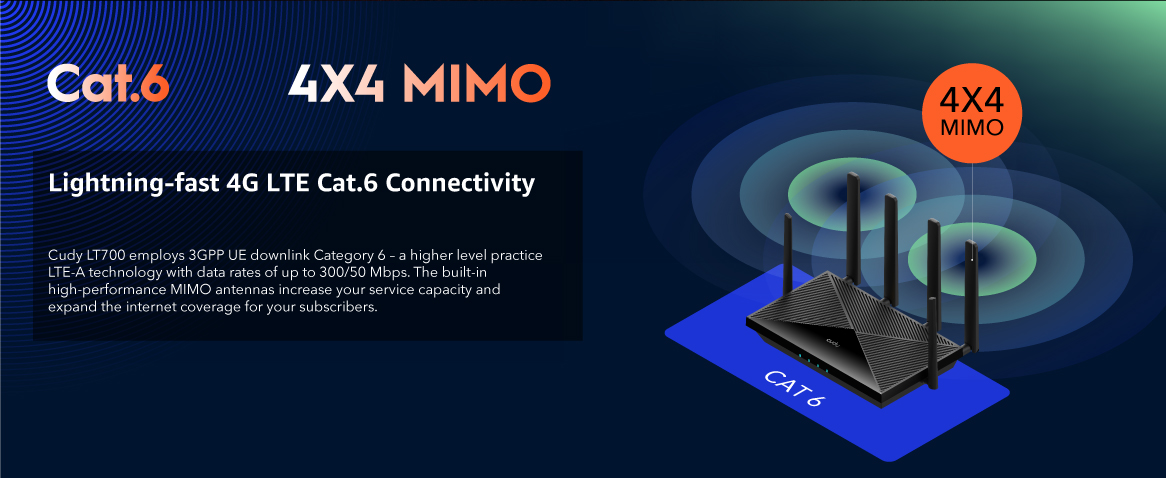

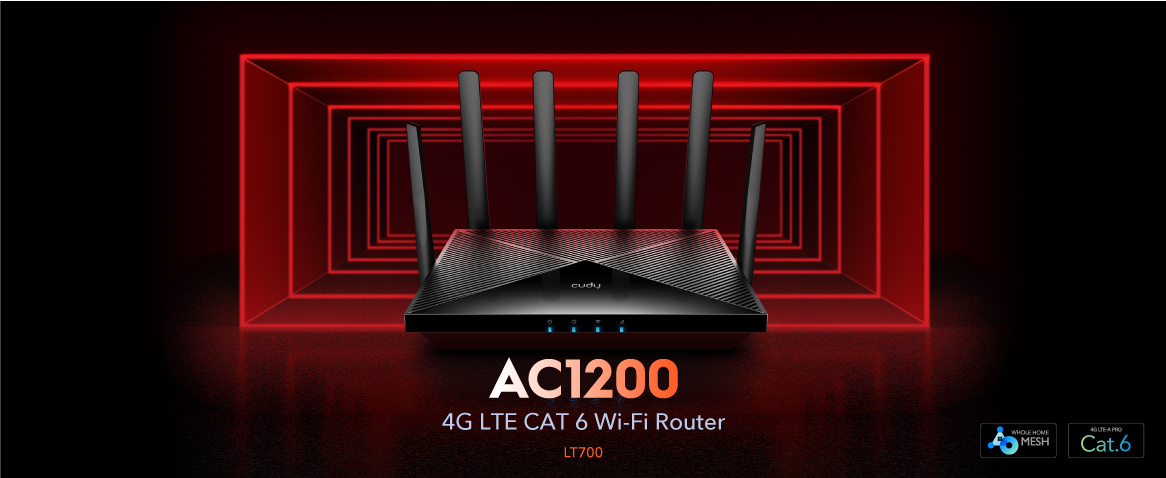

● 4G LTE-Advanced Cat. 6, Max 300 Gbps Download● Faster 4G with DL 2CA Technologies● Speedy AC1200 Dual-Band Wi-Fi● Dual SIM Failover● WAN Failover● 4× Gigabit Ports● 4× Detachable Cellular Antennas● 2× Fixed WiFi Antennas
Model 4G LTE CAT 6 Wi-Fi Router Data Speed Wi-Fi 2.4GHz (802.11n/g/b, MIMO 300Mbps) 5GHz (802.11ac/an/a, MIMO 867Mbps) LTE LTE FDD: Max 300 Mbps (DL)/50Mbps (UL) LTE TDD: Max 226 Mbps (DL)/28Mbps (UL) 3.9G (EU version) DC-HSDPA: Max 42 Mbps (DL)/ HSUPA: Max 5.76 Mbps (UL) WCDMA (EU version) WCDMA: Max 384Kbps (DL)/Max 384Kbps (UL) Hardware CPU: Mediatek Dual Core 880MHz DRAM: 128 MB DDR3 (1 Gbit) Flash: 16 MB NOR (128 Mbit) 4 x GbE RJ45: 1 GbE WAN/LAN + 3 GbE LAN 2 x SIM Slots (Nano) 1 x WPS Btton 1 x Reset Button 2 x Fixed WiFi Antennas 4 x Detachable Cellular Antennas LED indicators (Power,WiFi,Internet,Signal) Software DHCP:Server, Client List, Address Reservation NAT:Port Forwarding, Port Triggering, UPnP, DMZ Firewall:Mac Filter, IP Filter, Domain Filter DDNS:Compatible with 20 more DDNS providers VPN Client:PPTP/L2TP/OpenVPN/WireGuard DNS over TLS: Cloudflare/NextDNS/Google Schedule: Schedule Reboot /Wi-Fi Schedule Internet Protocol version 4 or 6 (IPv4/IPv6) Quality of Service (QoS) TTL configuration(Extend/Spoof) Band Selection Cellular Band EU Version Module: EG060K-EA (Qualcomm) LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD: B38/B40/B41/B42/B43 WCDMA: B1/B3/B5/B8 US Version Module: EG060K-NA (Qualcomm) LTE-FDD: B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71 LTE-TDD: B41/B48 Physical Product Dimension: 253×152.5×48.2mm (LxWxH) Package Dimension: 415x265x90mm (LxWxH) Power AC Power Adapter: Input: 90~260V Output: 12V, 1.5A DC input (12V-1.5A) Barrel Plug SMS Send Message Receive Message USSD Environmental Operation Temperature: 0° C to +45° C Storage Temperature: -40° C to +70° C Relative Humidity: 5% to 95% Non-Cond Package Contents 4G LTE WiFi Router Power Adapter RJ45 Ethernet Cable Quick Installation Guide System Requirements Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS,NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)
