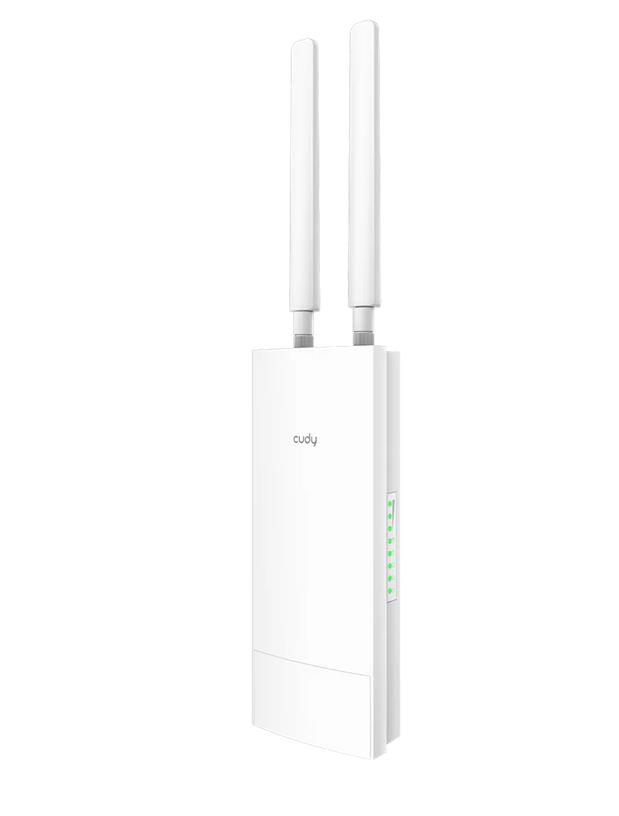

A pole/wall-mounted outdoor 4G LTE Advanced CPE with IP65 casing, one SIM slot, and accepting PoE, featuring AC1200 Wi-Fi, Cudy Mesh main node, and VPN features.• IP65, -40~70°C (-40~158°F), 6kV Surge• 4G Cat. 6 with Max 300 Mbps DL• DL 2-Carrier Aggregation, MIMO 1• 4-Stream Dual-Band Wi-Fi 5• 867 Mbps + 300 Mbps Wi-Fi 2• 50 Connected Devices 3• 1× Gigabit Ethernet Port (PoE In)• 1× Nano SIM Slot• 802.3at/af, 24~57V Passive PoE• Cudy Mesh, VPN Server and Client• Cudy App, Cloud Control CPUChipsetMT7621CPU Details880 MHz Dual-Core, MIPS1004KcMemory/StorageFlash/ROM16 MB (128 Mbit) NORDDR/RAM128 MB (1 Gbit) DDR3CellularCellular Standards4G LTE Cat. 6Cellular Antennas2× DetachableDetachable Cellular Antennas ConnectorSMA FemaleSIM Options1× Nano SIM SlotAvailable VersionsEU, USEU Version CellularSuitable RegionEurope, Middle East, Africa, Australia, BrazilMax DL Speed300 Mbps (LTE-FDD), 220 Mbps (LTE-TDD)Max UL Speed50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)AdvancedDL 2CA, DL 2×2 MIMOCellular BandsLTE-FDD: B1/3/5/7/8/20/28/32LTE-TDD: B38/40/41WCDMA: B1/5/8US Version CellularSuitable RegionUnited States, CanadaMax DL Speed300 Mbps (LTE-FDD), 226 Mbps (LTE-TDD)Max UL Speed50 Mbps (LTE-FDD), 28 Mbps (LTE-TDD)AdvancedDL 2CA, DL 4×4 MIMOCellular BandsLTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71LTE-TDD: B41/48Wireless5 GHz Wi-Fi Speed867 Mbps2.4 GHz Wi-Fi Speed300 Mbps5 GHz Wi-Fi Streams2T2R (2×2 MIMO)2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)Wi-Fi Antennas2× Internal5 GHz Antenna Gain Max5.2 dBi2.4 GHz Antenna Gain Max4.0 dBiBeamformingTRUEFEM or PA/LNA5 GHz: 2× Internal2.4 GHz: 2× InternalRange PerformanceMax: 170 m (558 ft)Park: 150 m (492 ft)Street: 50 m (164 ft)Woods: 30 m (98 ft)Wall PerformanceNAInterfacesPhysical ButtonsReset ButtonGigabit RJ45 Ports1Ethernet NotesAccepts PoE poweringLEDSystemInternetLANWi-FiCellular Signal StrengthPower InputPoE via Ethernet PortPowerPower Methods802.3at/af PoEPassive PoEPassive PoE48~57VPower AdapterInput: 100 ~ 240 V, 50/60 Hz ACOutput: 48V 0.32A DCReliabilityEMSIEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kVIEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kVEnvironmentOperating Temperature: -20 ℃ ~ 60 ℃ (-4 ℉ ~140 ℉)Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉)Operating Humidity: 0% ~ 100% non-condensingStorage Humidity: 5% ~ 90% non-condensing
