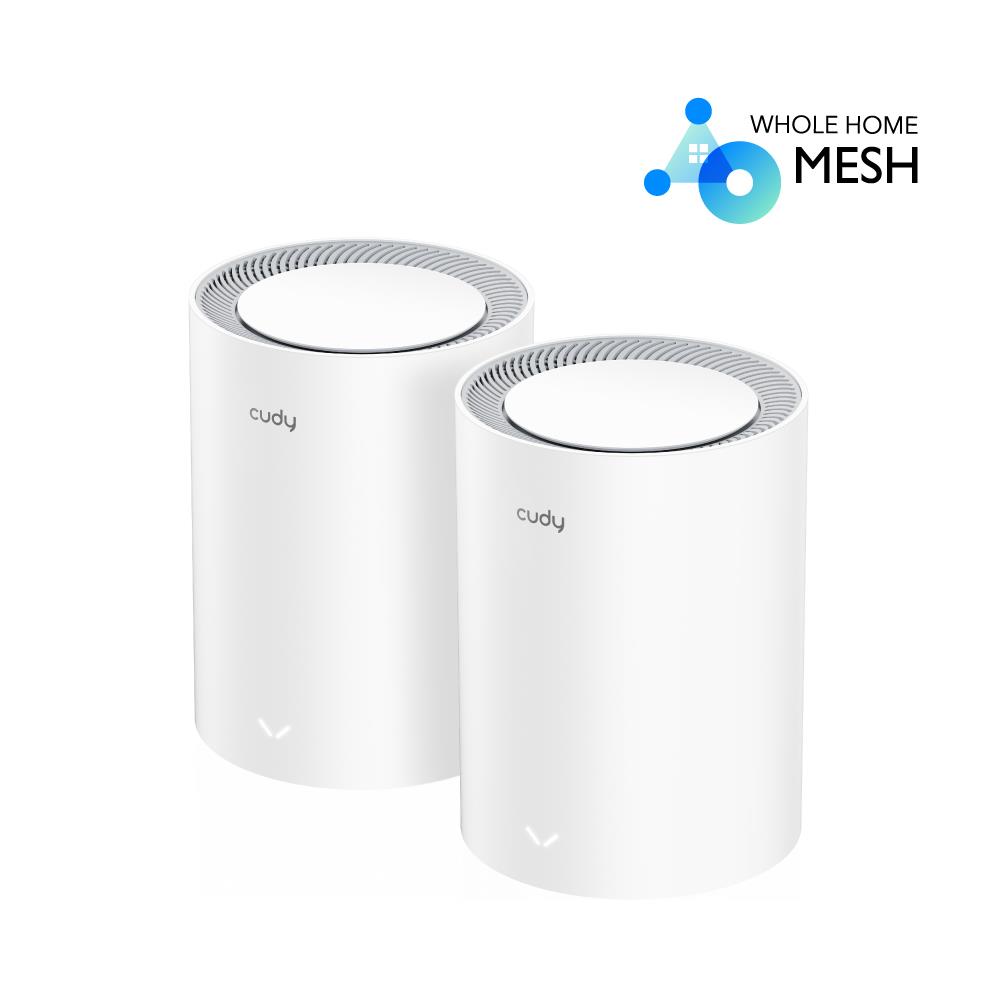

A mesh WiFi 6 system with five antennas to provide a super-fast network for large homes with 4K streaming and gaming demands. Suitable for internet access up to 2.5 Gbps.1.3 GHz Dual-Core CPU4-Stream Dual-Band Wi-Fi 62402 Mbps + 574 Mbps Wi-Fi 1200 Connected Devices 2Fast RoamingCudy Mesh, VPN Server and ClientMulti-Band Simultaneous BackhaulCudy App, Cloud Control M3000 2.0 CPU CPU Chipset MT7981 CPU Details 1.3 GHz Dual-Core, ARM Cortex-A53 Memory/Storage Memory/Storage Flash/ROM 128 MB (1 Gbit) NAND DDR/RAM 256 MB (2 Gbit) DDR3 Wireless Wireless 5 GHz Wi-Fi Speed 2402 Mbps 2.4 GHz Wi-Fi Speed 574 Mbps 5 GHz Wi-Fi Streams 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams 2T2R (2×2 MIMO) Wi-Fi Antennas 5× Internal 5 GHz Antenna Gain Max 5.1dBi 2.4 GHz Antenna Gain Max 4.2dBi FEM or PA/LNA5 GHz: 3× Internal 2.4 GHz: 2× InternalBeamforming True Range Performance Max: 200 m (656 ft)Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions. Wall PerformanceTwo wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 20 cm (7) or two concrete walls with thickness < 10 cm (4) Multi-Pack Indoor Coverage 2 Pack: 360 m² (3900 sq ft)3 Pack: 500 m² (5500 sq ft)Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of two obstacles to each room. Interfaces Interfaces 2.5G RJ45 Ports 1 Gigabit RJ45 Ports 1 Ethernet Notes The 2.5G port is WAN port, the Gigabit port is LAN port LEDSystem Speed/Link/ACT of Ethernet PortPhysical ButtonsWPS Button Reset ButtonPower Input DC Jack Power Power Power Methods DC DC 12V 1A Power Adapter Input: 100 ~ 240 V, 50/60 Hz ACOutput: 12V 1A DC **Wi-Fi StandardsWi-Fi Standards Wi-Fi 6 Max Wi-Fi Modulation 1024-QAM Wi-Fi EfficiencyOFDMA MU-MIMO BSS ColorMax Capacity 512 Recommended Client Upper Limit 200 Max Wi-Fi Channel Width 160 MHz Wi-Fi Security WPA/WPA2/WPA3 Guest Network 2.4 GHz, 5 GHz WPS True General General Operation ModesWi-Fi Router Access Point Range Extender WISP ClientMesh Cudy Mesh Mesh BackhaulWireless Backhaul Wired BackhaulMulti-Band Backhaul true WAN ModeDHCP Static IP PPPOEInternet Failover SequenceWAN WISP Network Network QoS Per-User Rate Limiting DHCPAddress Reservation DHCP Client List ServerIP Versions IPv4/IPv6 IPv6 ProtocolsRelay Dynamic (SLAAC/DHCPv6) Staic (Fixed IP) Passthrough 464XLAT MAP-E DS-LiteIPTV/VLANBridge Tag VLANTTL CustomizationExtend Spoof CustomIGMPIGMP Proxy IGMP SnoopingForwardingPort Forwarding Port Triggering UPnP DMZFirewallSPI Firewall DoS Protection Block PINGApplication Layer GatewayIPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough Utilities Utilities VPN ServerWireGuard OpenVPN IPsec Zerotier PPTP L2TPVPN ClientWireGuard OpenVPN IPsec Zerotier PPTP L2TPDNS OptionsDNS over TLS Manual DNS Rebind Protection Override Clients DNSDNS over TLS ProvidersCloudflare Google Quad9 CustomWake on LAN True Online Detection True Management Management All Devices ManagementWi-Fi Time Schedule MAC Filter IP/MAC BindingPer-Devices ManagementIntenent On/Off VPN On/Off Online Time Schedule Device RenameContent ManagementDomain Filter IP Filter
